Laser Cut Kits


Our Line of Laser Cut Complete Kits

Laser Cut Complete Kits Listing with Prices
This page last updated on April 17, 2017.
Many thanks to the customers who have sent in photos of their models which we have used to illustrate the kits and plans in our line.

Laser Cut Complete Kit Description

We start out line of laser cut kits with subjects from our printwood line that have been out of stock after our stocks of printwood have been used up. In many cases the original designs have been modified slightly and have additonal drawings and instructions. As we go into this new line the kit numbers will be the same as the old kits with the suffix -LC added to the kit number. In the future any new kit designs will continue with the next kit number in line and a -LC added.

All Laser Cut Complete Kits contain printed plans, building instructions, precision laser cut balsa parts, balsa stripwood, plastic canopy, plastic prop with hardware, rubber motor, Japanese Esaki tissue, and decals. Some kits may have added parts as noted.

Note: Initially the Laser Cut Kits are only sold direct, not through dealers. Note: Items marked ** are in short supply. Check product news page for information. Note: Items marked *** are temporarily out of stock. Check product news page for information on future availability. Note: Items marked #### are out of stock indefinitely or kit has been retired. Check product news page for information on future availability.

TO ORDER USING PAYPAL GO TO THE ORDERING INSTRUCTIONS PAGE BY CLICKING HERE AND THEN CLICK ON THE PAYNOW BUTTON NEAR THE MIDDLE OF THE PAGE ABOVE THE PAYPAL LOGO.

KIT # 25-LC. VOUGHT SB2U VINDICATOR
KIT # 25-LC. VOUGHT SB2U VINDICATOR. WW2 U.S. Navy Dive Bomber, 1/24 scale, 21” span. Although obsolete at the start of the way it was used at the Battle of Midway and also served aboard the Ranger in the Atlantic. 4 color decals covering several aircraft are included.
KIT LIST PRICE $42.95--IN STOCK NOW.



KIT # 27-LC. NAKAJIMA KI-27 “NATE”
KIT # 27-LC. NAKAJIMA KI-27 “NATE”. Late 1930’s and WW2 Japanese Army Air Force fighter, 1/24 scale, 18.56” span. The kit includes 1 color decals. This plane was used by the Japanese in the late 1930's against China and continued in use early against the Americans until gradually replaced by later aircraft.
KIT LIST PRICE $37.95--IN
 STOCK NOW

KIT # 28-LC. GRUMMAN F3F/GULFHAWK. BUILD EITHER VERSION
KIT # 28-LC. GRUMMAN F3F/GULFHAWK. BUILD EITHER VERSION.
Late 1930’s U.S. Navy Biplane Fighter. The Gulfhawk version is also shown and the parts provided may build either version. 1/24 scale, 16 inch span. The includes 4 color decals for both versions.
KIT LIST PRICE $36.95-IN STOCK NOW

KIT # 29-LC. HAWKER TYPHOON IB
KIT # 29-LC. HAWKER TYPHOON IB. WW2 British Fighter and Attack plane. 1/24 scale, 21.79” span. Includes full color insignias in plain and adhesive backed paper.
KIT LIST PRICE $41.95--IN STOCK NOW.

KIT # 30-LC. BREWSTER F2A BUFFALO
COMING SOON.

KIT # 30-LC. BREWSTER F2A BUFFALO. PRE-WAR & WW2 US Navy, British, and Finnish Fighter. 1/24 scale, 17.5” span. The kit includes 6 color decals (3 Countries, British, Finnish, US Navy). Plans show all major versions, F2A-2,-3, B-239, & B-339.
KIT LIST PRICE $38.95 LATE SUMMER 2017.

KIT # 31-LC. NAKAJIMA Ki-43 OSCAR

KIT # 31-LC. NAKAJIMA Ki-43 OSCAR. WW2 JAPANESE ARMY AIR FORCE Fighter. 1/24 scale, 18.87” span. All major versions, Mk-I, Mk-II, & Mk-III are shown on the plans. The kit includes 2 color decals, and 2 different canopies covering all three major versions.
KIT LIST PRICE $36.95-IN STOCK NOW.

KIT # 34-LC. DOUGLAS SBD-3/5 DAUNTLESS. WW2 U.S. NAVY AND MARINE DIVE BOMBER

KIT # 34-LC. DOUGLAS SBD-3/5 DAUNTLESS. WW2 U.S. NAVY AND MARINE DIVE BOMBER. 1/24 scale, 20.77” span. Famous for sinking 4 Japanese aircraft carriers at Midway. The kit includes 4 color decals. I decal sheet shows perforations for dive flaps. This kit has replaced the 1/32 thick wing ribs and formers with 1/16 thick balsa for easier handling during construction.
KIT LIST PRICE $42.95--IN STOCK NOW!!

KIT # 35-LC. NAKAJIMA B5N2 KATE. WW2 JAPANESE NAVY ATTACK/TORPEDO BOMBER

KIT # 35-LC. NAKAJIMA B5N2 “KATE”. WW2 JAPANESE NAVY ATTACK/TORPEDO BOMBER. 1/24 scale, 25.46” span. This was the first line attack/torpedo bomber for the IJNAF at the beginning of the war. The kit includes color decals. This kit has replaced the 1/32 thick wing ribs and formers with 1/16 thick balsa for easier handling during construction.
KIT LIST PRICE $42.95 ---IN STOCK NOW

KIT # 36-LC. BELL P-39 AIRACOBRA. WW2 U.S. ARMY AIR FORCE AND RUSSIAN FIGHTER

KIT # 36-LC. BELL P-39 AIRACOBRA. WW2 U.S. ARMY AIR FORCE AND RUSSIAN FIGHTER 1/24 scale, 17” span. Used in the Pacific theater in early WW2. The 3 color decals for USA and Russian markings.
KIT LIST PRICE $36.95---IN STOCK NOW

# 37-LC. NAKAJIMA Ki-44 TOJO.  WW2 JAPANESE ARMY AIR FORCE FIGHTER

# 37-LC. NAKAJIMA Ki-44 "TOJO".
WW2 JAPANESE ARMY AIR FORCE FIGHTER. 1/24 scale, 15.5” span. Designed as a high speed interceptor the Tojo ended the war chasing B-29's. The kit includes laser cut balsa parts, and all the other stuff as listed at the befinning of this web page above. The 1 color stick on decals.
KIT LIST PRICE $36.95--IN STOCK NOW



KIT # 38-LC. GRUMMAN TBF/TBM AVENGER

KIT # 38-LC. GRUMMAN TBF/TBM AVENGER. WW2 US NAVY TORPEDO BOMBER. Became the best torpedo bomber of the war. 1/24 scale, 27.08" span. Build any version from the TBF-1 through TBM-3E. The kit features Align-O-Tab construction. The kit includes 4 color decals, nine sheets of laser cut parts, and molded plastic canopy, turret, and tunnel gun position.
KIT LIST PRICE $53.95--IN STOCK NOW.

KIT # 39-LC. AICHI D3A1/2 VAL WW2 JAPANESE NAVY DIVE-BOMBER

KIT # 39-LC. AICHI D3A1/2 "VAL" WW2 JAPANESE NAVY DIVE-BOMBER. The Val was the Japanese Navy's front line dive-bomber at the beginning of WW2. Build either version from the kit. 1/24 scale, with a 23.85” wingspan. Based on an original design by Nate Sturman. The kit 8 laser cut wood sheets, 2 color decals and molded plastic canopy with extension for D3A2 version.
KIT LIST PRICE $47.95--IN STOCK NOW.

KIT #40-LC THE REPUBLIC P-47 THUNDERBOLT WW2 U.S. AIR FORCE FIGHTER. BUILD ANY ONE OF 3 DIFFERENT VERSIONS FROM THE KIT

KIT #40-LC THE REPUBLIC P-47 “THUNDERBOLT” WW2 U.S. AIR FORCE FIGHTER. BUILD ANY ONE OF 3 DIFFERENT VERSIONS FROM THE KIT. The kit provides materials to build any one of 3 versions, the P-47D, both razorback and bubble top, or the P-47N. The P-47, affectionately nicknamed "Jug," the P-47 was one of the most famous AAF fighter planes of WW II. Used as both a high-altitude escort fighter and a low- level fighter-bomber, the P-47 quickly gained a reputation for ruggedness. It was the heaviest single engine fighter of the war. Our model is in 1/24 scale having a wingspan of 20.39” for the P-47D versions and 21.28" for the N version. The kit will build into any 1 of 3 versions, the P-47D razorback or bubble top and the P-47N. It can be readily converted to any of the latter types if the builder wants to. The kit includes all 2 color decals, and molded plastic canopies for razorback and bubble top versions.
KIT LIST PRICE $41.95---IN STOCK NOW

KIT #41-LC THE MITSUBISHI J2M3 RAIDEN (THUNDERBOLT), OR JACK

KIT #41-LC THE MITSUBISHI J2M3 “RAIDEN” (THUNDERBOLT), OR “JACK”, WW2 JAPANESE LAND BASED NAVY FIGHTER The Mitsubishi J2M3 Raiden, or Thunderbolt in English, code named “Jack” by the allies, was the first Japanese naval fighter specifically designed for the land-based interception role. Some examples of the Raiden fought briefly in the Philippines in September 1944. Most were retained for home defense. When flown by experienced pilots, the Jack was preferred over all other day fighters as a B-29 killer. Its armament was powerful enough to destroy a B-29 and as long as its primary opponent was unescorted B-29s, the Jack was superb for the job. Our model of the Jack is the J3M3 version of which 160 were built. It is in 1/24 scale, with a 17.71” wingspan. The kit includes two color decals.
KIT LIST PRICE $36.95--IN STOCK NOW!

KIT # 42-LC CURTISS P-40B/C WARHAWK

KIT # 42-LC CURTISS P-40B/C WARHAWK. The P-40B/C was the Army Air Corps frontline fighter when the U.S. entered WW2. Although obsolete compared to the Zero, Me-109, or Spitfire it was used effectively by the A. V. G. and British early in the war. It was used by the British as the Tomahawk IIA or IIB. Our model is in 1/24 scale with a wingspan of 18.45". The kit includes 4 color decals for U.S. Army version. This kit has included optional parts for building an increased dihedral wing for contest flyers.
KIT LIST PRICE $36.95--IN STOCK!

KIT # 43-LC NAKAJIMA Ki-84 FRANK

KIT # 43-LC NAKAJIMA Ki-84 FRANK. The Ki-84, Hayate (Hurricane), code named Frank was generally regarded as the best Japanese Army fighter of WW2. A captured Ki-84-1a was to out climb and out maneuve a P-47 and a P-51. The first batches were sent to China, where the 22nd Sentai, when equipped with the new fighter, was able to fly rings around Chennault's 14th Air Force. The 22nd Sentai later moved to the Philippines, where problems overtook them, with many accidents and shorages and extremely poor serviceability. Our model is in 1/24 scale with a wingspan of 18.45". The kit includes 2 color decals.
KIT LIST PRICE $37.95---IN STOCK

KIT # 44-LC THE CURTISS SB2C-4 HELLDIVER

KIT # 44-LC THE CURTISS SB2C-4 HELLDIVER. The SB2C Helldiver was designed as a replacement for the Douglas SBD Dauntless. The original prototype flew in December 1940. Many teething problems delayed production until June 1942 when the first SB2C-1 was finished. SB2C-1C’s followed entering combat in November 1943 from the Carrier Bunker Hill. Other versions were A-25’s for the Army, SB2C- 3’s, SB2C-4’s, and finally the SB2C-5. Although our model is specifically the SB2C-4, any of the SB2C versions can be made from the kit with minor modifications using references sited on the drawings. Our model is in 1/24 scale having a wingspan of 24.88” and features Align-O-Tab construction. The kit includes 2 sheets of color decals. One sheet includes red centered perforated dive flap details.
KIT LIST PRICE $48.95 IN STOCK.

KIT # 45-LC THE MITSUBISHI Ki-30 ANN

KIT # 45-LC THE MITSUBISHI Ki-30 ANN. The Ann served in many of the bomber units in China. Some were encountered in the early Philippine campaigns in support of the Japanese Army’s occupation of the Philippines. In early 1942 surviving aircraft of this type were relegated to training units. A few Anns were used by the Royal Thai Air Force against the French. Total production was just over 700 aircraft between 1937 and 1941.Our model is in 1/24 scale, with a 23.89” wingspan. Our design is modified from Nate Sturman’s original design based on new reference information and modifications for kitting. The kit includes 1 color decals.
KIT LIST PRICE $44.95---IN STOCK.

KIT # 46-LC VULTEE P-66 VANGUARD

KIT # 46-LC VULTEE P-66 VANGUARD. The P-66 was originally designed for the USAAF but was not up to performance of the newer WW2 fighters being built with higher HP engines. So it was going to be sold to Sweden. However, the US government steped in and decided to ship them to the British but they were relinquished and then sent to China. The USAAF did equip a west coast squadron or two with them but they were eventually either sent to China or used as advanced fighter trainers. Our model is in 1/24 scale with a wingspan of 17.92" and features Align-O-Tab construction. The kit includes plain paper color insignias printed on both regular paper and adhesive backed paper for U.S. Army version and the Chinese version.
KIT LIST PRICE $37.95--IN STOCK!

IN STOCK NOW.

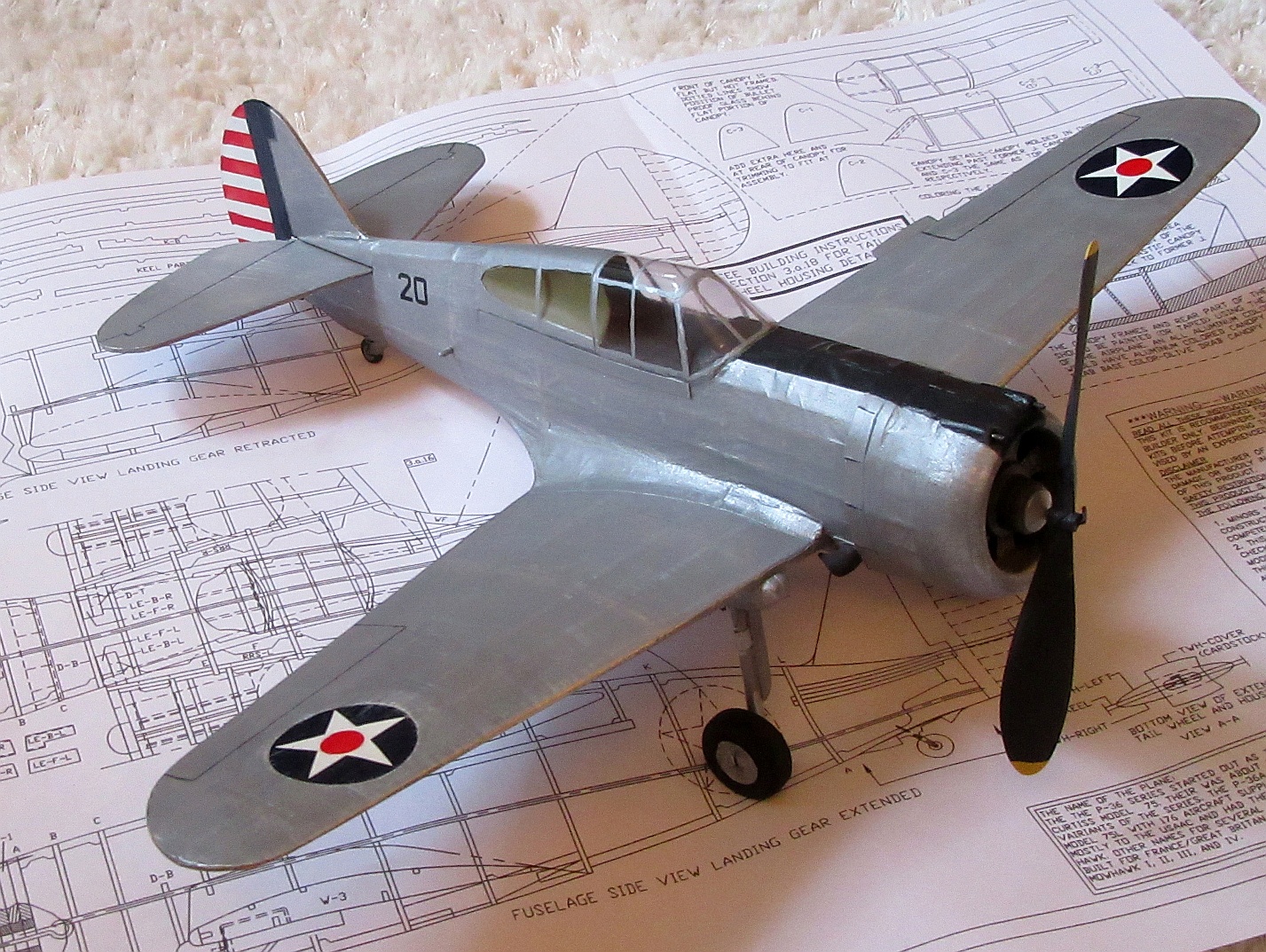

KIT # 47-LC CURTISS P-36A HAWK. The P-36 was originally designed for the USAAF and was a derivative of the Hawk 75 series and predicessor of the P-40. Obsolete by WW2 they were still in use at Pearl Harbor and with other countries such as China. Our model is in 1/24 scale with a wingspan of 18.65" and features Align-O-Tab construction. The kit includes 4 color decals for U.S. Army version.
KIT LIST PRICE $37.95--IN STOCK
